Specific Challenge

Drill curve/lateral section with minimal drilling dysfunctions in a single run

North America North America

Midland Basin / Texas

North America


  • One BHA that delivers high DLS in the curve section, and capable of drilling the lateral section with minimal drilling dysfunctions to deliver single-run curve/lateral sections


Customize the BHA design by:

  • Utilizing DatCI™ design at the customer interface
  • Deploying HyperSteer™ directional drill bit to achieve necessary build rates through reduced makeup length
  • Remove the flex assembly to reduce vibrations in the lateral section


  • Delivered the DLS required in the curve section and drilled the lateral with the same BHA
  • Increased footage drilled by initial BHA
  • Doubled the percentage of single-run curve/lateral runs
  • Eliminated trips in the lateral to change out the BHA to remove the flex assembly


To optimize drilling performance and improve efficiency, an operator in the Midland Basin required a bottomhole assembly (BHA) designed to reduce drilling dysfunctions and complete curve and lateral sections in a single run. The operator recruited Halliburton to address these challenges and complete as many single-run curve/lateral sections as possible. Addressing the above challenges required a customized BHA design that utilized a motorized rotary steerable system (RSS) with an iCruise® X intelligent RSS along with a standard makeup length bit.


While flex assemblies yield acceptable build rates to land a curve per the directional plan, high vibrations can occur when the BHA continues drilling into the lateral. This can lead to premature tool/bit failure requiring a sometimes long and costly trip out of the hole.


As part of the DatCI™ design at the customer interface process, Halliburton determined that removal of the flex assembly in the motorized RSS BHA could help reduce shock and vibration when the BHA is drilled into the lateral after completion of the curve. This would increase one-run curve/lateral success rates and reduce trips and BHAs needed to drill the section. Halliburton selected the HyperSteer™ directional drill bit because it utilizes a shorter makeup length resulting in a reduced bit-to-pad length. This combination allows removal of the flex assembly but with the capability to achieve the desired build rates necessary to land the curve within a set window.


The HyperSteer directional drill bit proved to have less shock and vibrations in the lateral compared to competitor bits, and the operator was able to complete the curves without a flex assembly and achieve several one-run curve/lateral sections. This solution doubled the operator’s percentage of one-run curve/laterals. Additionally, more footage was achieved with the initial BHA and less time was spent tripping in the lateral to change out the BHA to remove the flex assembly.

Featured products

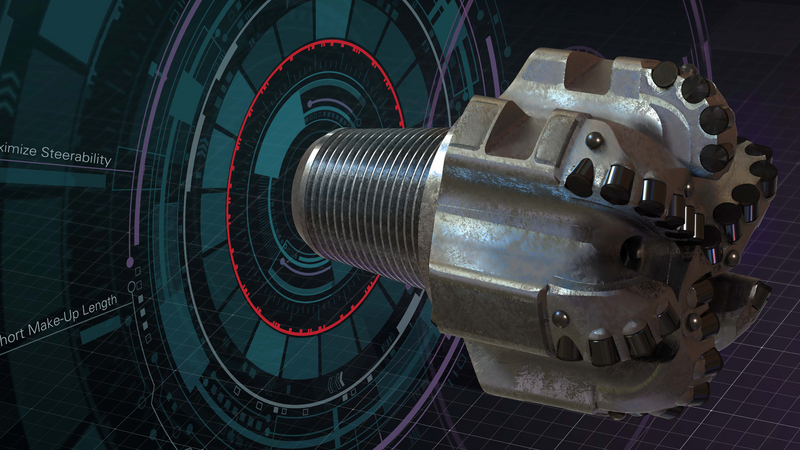

HyperSteer™ Directional Drill Bits
