The complete downhole well testing solution


The Halliburton RezConnect® well testing system is the industry's first fully acoustic actuated drill stem test (DST) system. It gets you informed decisions faster through wireless control of downhole DST tools, real-time measurement, and analysis of the well—all to help maximize asset value and minimize operational risk.

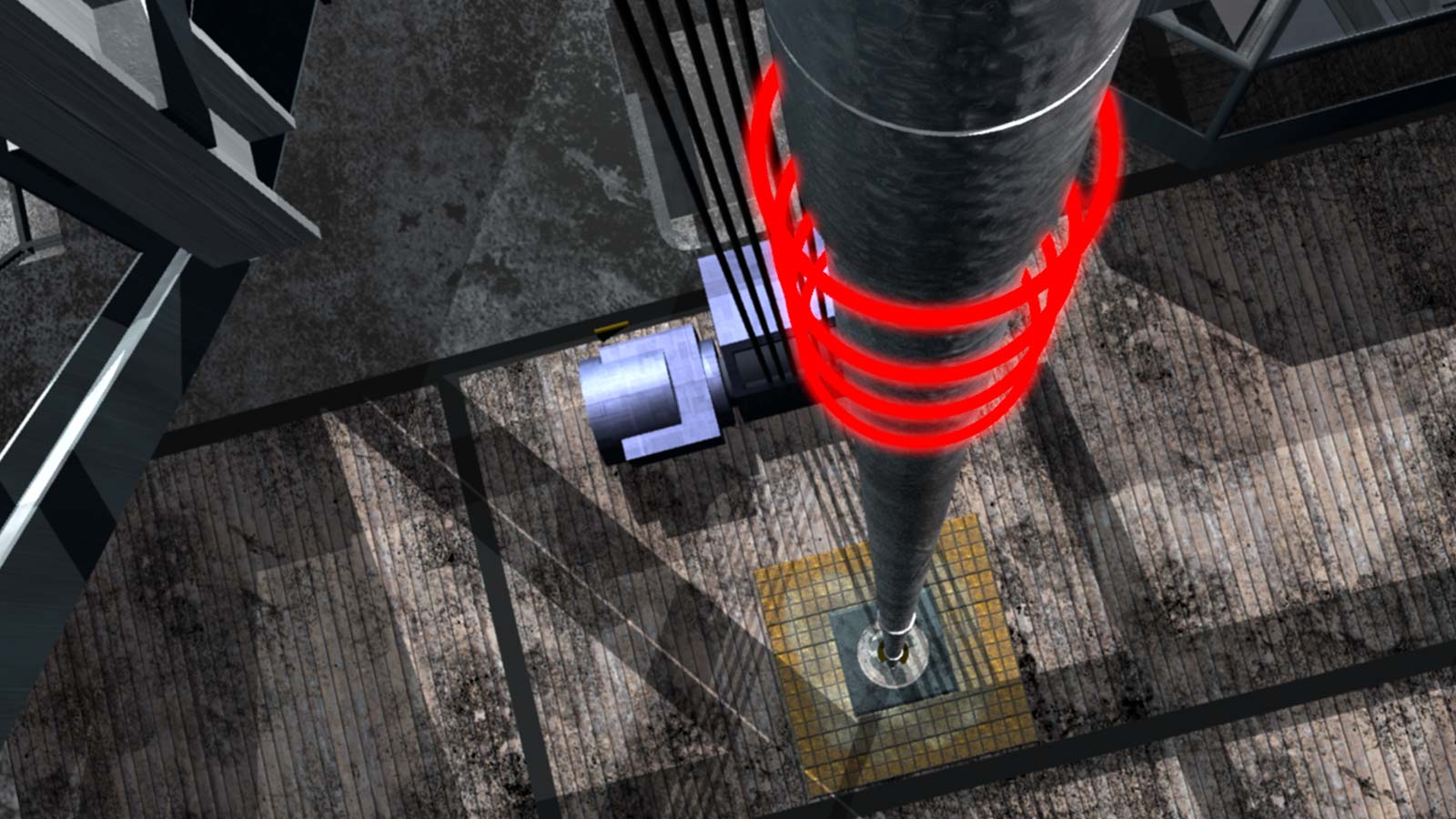

RezConnect well testing system

CASE STUDY / BRAZIL

RezConnect® System Performs Full Acoustic Control of DST

The RezConnect system successfully communicated at 100% throughout a well test, demonstrating the reliability of downhole wireless technology. The system is the industry’s first fully acoustically actuated DST system powered by the proven DynaLink® telemetry system. It offers a complete well testing solution for acoustic control of DST tools, with measurement and analysis of well test data in real-time.

SEE CASE STUDY
1st

Industry solution

700+

Jobs performed globally

15K+

psi

7+

Unique tools

Offshore Technology Conference (OTC) Spotlight on New Technology

OTC recognizes innovative technologies every year. This prestigious award is for companies that are revolutionizing the future of offshore energy through technological advancement and innovation. Halliburton Testing and Subsea technologies recognized:

2021 - DynaTrac™ Real-time Wireless Depth Correlation System

2018 - WiFire® Acoustic Firing Head

2015 - RezConnect® Well Testing System



DynaTrac - The real-time "Downhole ruler"
DynaTrac - The real-time "Downhole ruler"
WiFire Acoustic Firing Head
WiFire Acoustic Firing Head
RezConnect Well Testing System
RezConnect Well Testing System

Control, Measure, Analyze

RezConnect well testing system offers a complete well testing solution for acoustic control of DST tools

02:27
Control, Measure, Analyze

Have a dialogue with your reservoir®

Award Winning RezConnect is a First-of-its-Kind Solution

Powered by a set of unique tools, the system offers a complete well testing solution for acoustic control of DST tools, with measurement and analysis of well test data in real-time. It enables you to make informed decisions faster with real-time surface verification of DST tools' operational status and acoustic activation of bottom hole fluid samplers.



DynaLink® Telemetry System is an acoustic telemetry system that allows real time bi-directional communication between downhole tools and the surface. It serves as the conduit for data, controlling and providing feedback of the downhole tool functions enhancing the operator's connection with the well.

ProPhase™ Well Test Valve is a telemetry controlled, electrohydraulic well test valve combining the functionality of both a tester and circulating valve. Like the other downhole tools in the RezConnect system, it has built in redundancy which is the ability to be activated with annulus pressure "profiles."

Armada® Sampling System collects up to 3.6L of representative reservoir fluid and leads the industry in numerous areas including HPHT environments. As part of the RezConnect system, the Armada can be activated in three independent collection events using either acoustic control or annulus pressure.

TRACE DynaGauge® is the industry's first and only tool that provides real-time knowledge that representative reservoir fluid samples have been collected while the samplers are still downhole by monitoring the common nitrogen chamber in the Armada Sampling System. With TRACE DynaGauge you have the capability to ensure your sampling objectives are achieved.

CHAMP® Ion Retrievable Packer is the most recent addition to the RezConnect system. It is an acoustically controlled multi-set packer ideal for high rig heave offshore environments. The CHAMP Ion packer can be acoustically set multiple times in a single trip enabling multi-zone treating, testing, or squeezing, and provides real-time feedback for greater packer setting confidence.

WiFire® Acoustic Firing Head enables activation of tubing conveyed perforating guns and confirms initiation of the explosive train. Built-in safety mechanisms and redundancy provide the highest level of safety. The system can be run along with other firing heads for further flexibility and control.

DynaTrac™ Acoustic Real-Time Depth Correlation System increases efficiency during operations that require accurate bottomhole assembly (BHA) depth or position with on-demand positioning throughout well operations. The system eliminates uncertainty of BHA’s position without wireline intervention or workstring manipulation. This solution consists of an array of gamma sensor functions as a real-time downhole ruler able to track the BHA movements due to expansion or contraction of the workstring.
