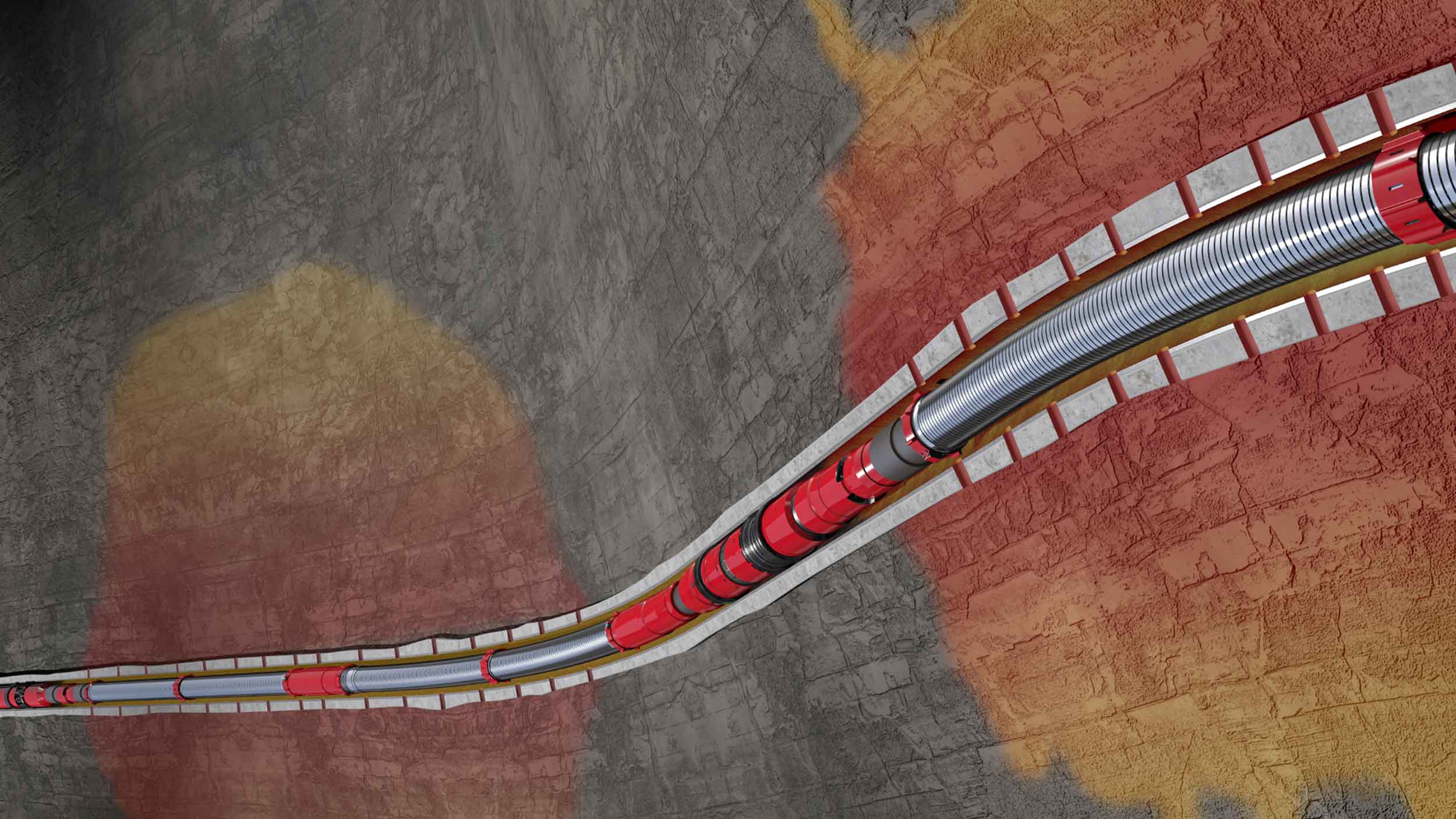

XSTMZ™ xtreme single-trip multizone completion systems
SAND CONTROL

XSTMZ™ xtreme single-trip multizone completion systems

Efficiently and reliably stimulate and gravel pack long pay zones in extreme conditions

Talk to an expert

Designed to meet the evolving requirements of deep and ultra-deep water projects

In response to the evolving demands of deep and ultra-deepwater projects, particularly in the Gulf of Mexico Lower Tertiary region, operators require a robust single-trip multizone system. Halliburton developed the Xtreme Single-Trip Multizone (XSTMZ™) system to complete wells in extreme conditions. This system has a 15,000 psi pressure rating—an upgrade from the highly successful Enhanced Single-Trip Multizone (ESTMZ™) system.

The XSTMZ system’s enhanced pressure handling capabilities allow it to tackle higher screenout pressures, making it suitable for deeper wells and those demanding higher pump rates. Moreover, it introduces the ability to create zonal compartments, optimizing stimulation for long-pay zones with significant differential pressures.

Related Resources

Features

  • Fully rated 15,000 psi system, qualified as per API-11D1 (packers), API-19AC (accessories), and ISO-17824 (screens)
  • Up to 45 BPM stimulation rate with 3,750,000 lb total amount of high-strength proppant
  • Multi-position crossover tool including the ShurMAC™ reciprocating weight-down positioning tool
  • Seamless integration with 15K SmartWell system

Benefits

  • Improves productivity with more aggressive fracturing designs based on the increased pressure rating
  • Increases ultimate recovery by driving down abandonment pressure
  • Saves rig time by isolating and treating several intervals in a single trip, without setting packer plugs

Single-trip multizone system products

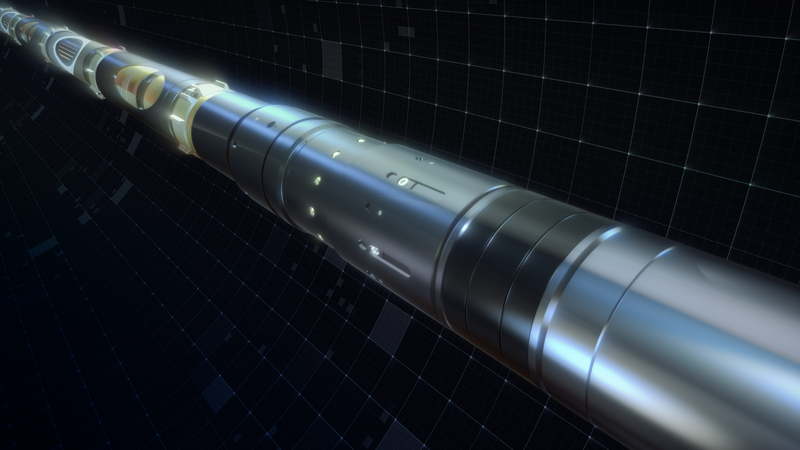

ESTMZ™ enhanced single-trip multizone system
