Interventions eliminated during packer-setting operations – saving time and removing riskDownload PDF
Prevent reservoir damage when opening the barrier valve
An operator wanted to set a production packer without intervention or control lines to surface to:
The eMotion-LV remotely operated barrier valve allows the completion to be run to depth with the ball open.
A global operator in the UK North Sea had a well with completion design limitations and desired to set a production packer hydraulically, without the need for intervention. Halliburton proposed running the eMotion®-LV remotely operated barrier valve, which can be repeatedly opened or closed by computer-controlled remote command, to set the production packer. Use of the eMotion-LV barrier valve to set the packer saved 29 hours rig time over conventional techniques, increasing the efficiency of the operation and helping reduce the associated risks.
An operator in the UK North Sea wanted to hydraulically set a production packer without intervention. The well conditions and completion design had a few limitations which created some challenges.
Halliburton recommended using the eMotion®-LV remotely operated barrier valve to set the production packer. The eMotion-LV valve is a computer-controlled, isolation barrier valve that can be repeatedly opened or closed by remote command. It is permanently deployed as part of the tubing where it is used as a full-bore, testable barrier during completion deployment operations.
The eMotion-LV isolation barrier valve was deployed below the production packer as part of the upper completion. It was run-in-hole in the open position (allowing the tubing to self fill) to a depth of 16,000 ft at a 90° deviation. Once at depth, the eMotion-LV valve was commanded to close by applying 750 psi for 15 minutes against the Fluid Loss Valve (FLV). The eMotion-LV valve was then used as a barrier to pressure up against for setting the production packer.
With the production packer successfully set and the tubing tested, the eMotion-LV valve was commanded to re-open by applying 2,250 psi for 15 minutes. This time, a short delay was pre-programmed into the valve, allowing the operator to bleed down the command pressure before it opened. This prevented a pressure surge that could potentially damage the reservoir and other completion equipment. The open eMotion-LV valve now provided full-bore access through the completion allowing the FLV to be sheared-out before handing the well over to production.
saved in rig time
Conventional intervention methods would have required the use of electric line runs consisting of tractors and strokers due to the horizontal architecture. Using the eMotion-LV valve in this application proved to save 29 hours rig time over the conventional techniques and prevented a pressure surge to the FLV in the lower completion, which had a limited pressure rating.
The use of intervention can add additional challenges regarding safety due to the additional personnel that are involved in the rig-up and testing of pressure-control equipment. The introduction of Remote Open Close Technology helped to mitigate these risks while helping to increase the overall efficiency of the operation.

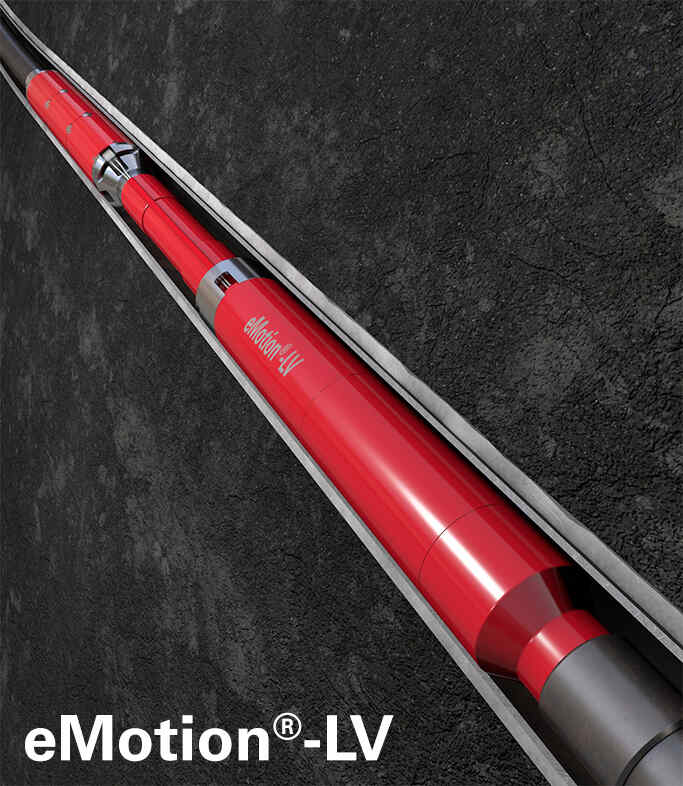

The eMotion-LV valve is a computer-controlled, isolation barrier valve that can be repeatedly opened or closed by remote command.Download Data Sheet
