Designed with a unique compact design for highly deviated or horizontal wells

Halliburton MatchSet conventional liner hanger has a unique compact design for highly deviated or horizontal wells. The hanger is equipped with premium O-rings and glass-filled Teflon backup rings to seal in the hydraulic cylinder. A high-strength alloy cylinder provides maximum burst and collapse rating.

The hanger is set by applying pressure through the drillpipe. A setting ball is circulated or dropped to the ball seat in the landing collar or running tool. Applied pressure acts on an internal piston, moving the slips up the cones to the set position. The hydraulic-set liner hanger incorporates a tapered roller bearing assembly, if required, which allows the liner to be rotated in the set position while cementing the liner.



MatchSet system related products

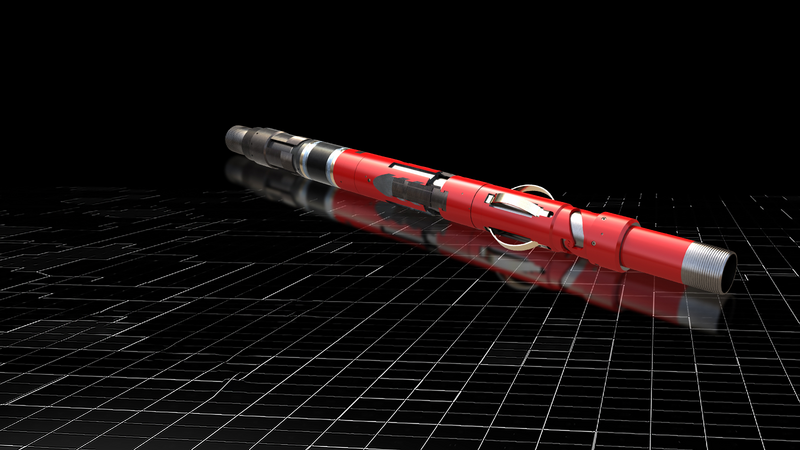

MatchSet® mechanical-set liner hanger with integral liner-top packer

MatchSet® mechanical-set liner hanger with integral liner-top packer

Integral liner hanger system for pressure-sensitive formations

Explore
MatchSet® mechanical-set pocket-slip liner hanger

MatchSet® mechanical-set pocket-slip liner hanger

Protected slips designed for pressure-sensitive formations

Explore
MatchSet® hydraulic-set liner hanger with integral liner-top packer

MatchSet® hydraulic-set liner hanger with integral liner-top packer

Integral liner hanger system for highly deviated or horizontal wells

Explore

Features

  • Available in rotation or non-rotation models
  • Slip and cone designed for minimum casing stress levels
  • Hardened slips bite and hold in all standard casing grade
  • Liner hanger body and cylinder have burst and collapse ratings equal to or greater than the API specifications for relevant grade of casing (unless otherwise stated)

Benefits

  • Unique protected slip design provides more slip contact area and uniform loading
  • Available in rotation or non-rotation models where tapered roller bearings allow liner to be rotated in set position
  • Hydraulic cylinder stays stationary with respect to body, seals static during rotation
  •  Capable of hanging long and heavy liners
  •  Large annular flow area in set position ensures minimum pressure drop

Applications

  • Drilling liner
  • Production liner
  • Openhole horizontal wells
  • Unconventional completions

Liner Hanger system portfolio

Liner Hangers

Liner Hangers

Halliburton liner hanger portfolio includes expandable and conventional options for mature, unconventional, deepwater, and geothermal applications.

Explore
VersaFlex® expandable liner hanger

VersaFlex® expandable liner hanger

Field-proven, total system approach to liner installations

Explore
Geothermal energy liner hanger solutions

Geothermal energy liner hanger solutions

Tiered solutions for geothermal well construction

Explore

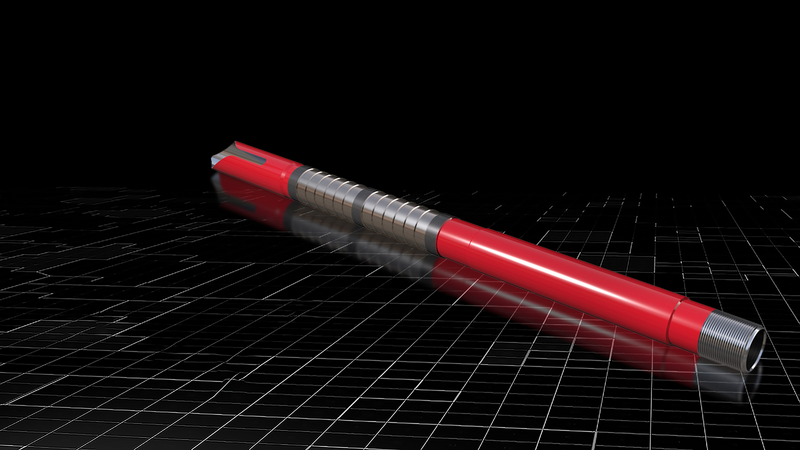

XtremeGrip® MLT system
