Dedicated wellhead design for conventional tubing hangers and platform and subsea horizontal treesTalk to an expert
V0-qualified, high-pressure plugs designed for use in extreme temperature and pressure environments
The SRP plug system is designed primarily for use in horizontal subsea trees
Designed for horizontal subsea trees, featuring metal-to-metal seal and composite packing stack.
Designed for use in extreme temperature and pressure environments
SRH high-pressure plugs are designed for use in extreme temperature and pressure environments. The top no-go plug is designed such that pressure from above and below is held by key/nipple engagement. Special non-elastomer V-packing stacks are gas-tight qualified up to 25,000 psi at 450°F.
SRP wellhead profile and plug
The Halliburton SRP plug system is designed primarily for use in horizontal subsea trees. Its compact size allows the tree to be shorter, which allows for smaller, less costly wellhead equipment. SRP wellhead backpressure valves provide pump-in well-kill capability, while providing complete well control. The valve features the same compact design and multiple seal backup available in the SRP wellhead plug.

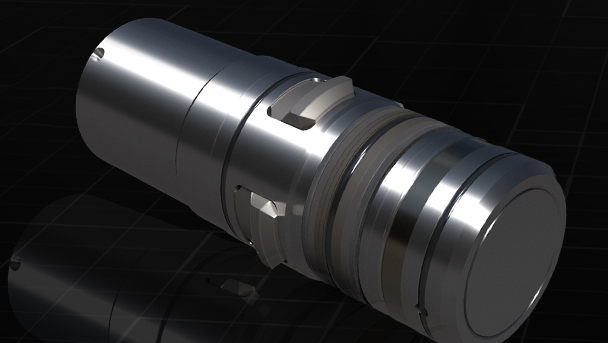

SSP wellhead plug and profile
Halliburton SSP wellhead plugs feature a primary metal-to-metal seal and a composite packing stack. These plugs are typically rated for 10,000-psi (15,000-psi test) pressures from above and below. The wellhead plug features demonstrate the benefits of Halliburton design expertise and field experience.
Maintain production control for the life of your well
