XN® and RN® landing nipples and lock mandrels

Designed for single nipple or bottom no-go applications

Otis® XN® and RN® no-go landing nipples are designed for use in single nipple installations or as the bottom nipple in a series of Otis X® or R® landing nipples. These landing nipples have the same packing bore ID for a particular tubing size and weight. Otis XN landing nipples are designed for use with standard weight tubing and RN landing nipples are used with heavyweight tubing.

Applications

Gauge hangers for bottomhole pressure/temperature surveys
Positive locator for straddle systems
Plugging under pressure
Almost unlimited locations for setting and locking subsurface flow controls

Features

Landing Nipples
- Large bore for minimum restriction
- Universal nipple with one internal profile

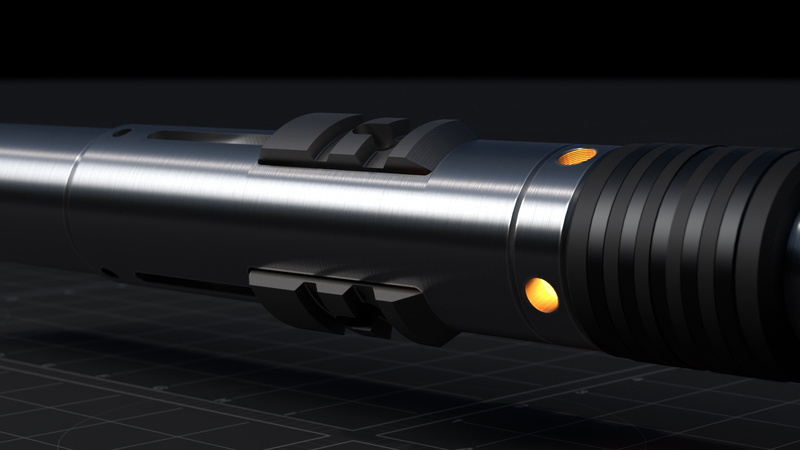

Lock Mandrels

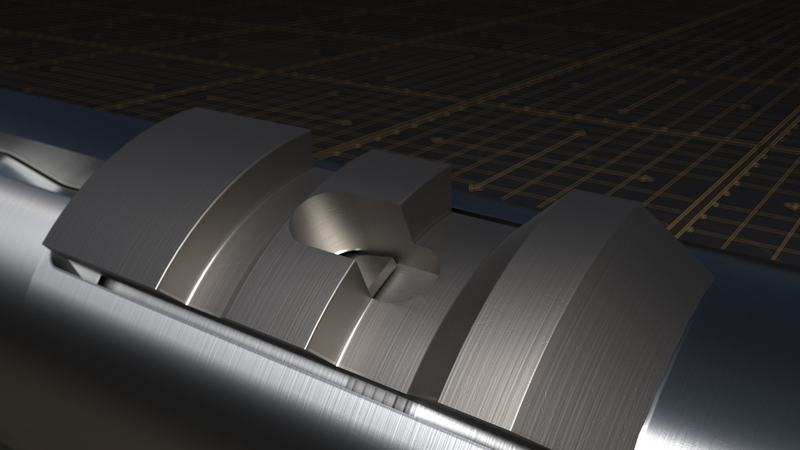

- Retractable locking keys
- Locks designed to hold pressure from above or below
- Extra large ID for higher flow volumes

Benefits

Landing Nipples
- Versatility helps reduce completion and production maintenance costs
- Simple operation
- Multiple options when running, setting, or retrieving subsurface flow controls

Lock Mandrels
- Faster slickline service because of the retractable keys
- Operator control of locating, landing, and locking in the selected nipple
- Inside fishing neck provides large ID to maximize production
