HyperSteer™ directional drill bit helps reduce costs, trips, and operational time
Download PDFUnconventionals
Drill a four-mile curve and lateral in a single run
Permian Basin / Texas
Pleased with production results from a successful trial pad of four-mile laterals, an operator planned to drill multiple new wells, each 3.5 miles or longer. The operator consulted Halliburton to help engineer a bit for a successful single-run drilling strategy.
Previous runs with bottomhole assemblies (BHAs) did not make it far into the lateral after drilling the curve before pulling out of hole because of penetration rates. Drilling a curve and lateral with a rotary steerable system (RSS) tool necessitates a highly steerable bit to meet dogleg severity (DLS) requirements. Simultaneously, the bit must remain stable during higher rates of penetration (ROP) to minimize harmful shock and vibration while drilling the lateral.

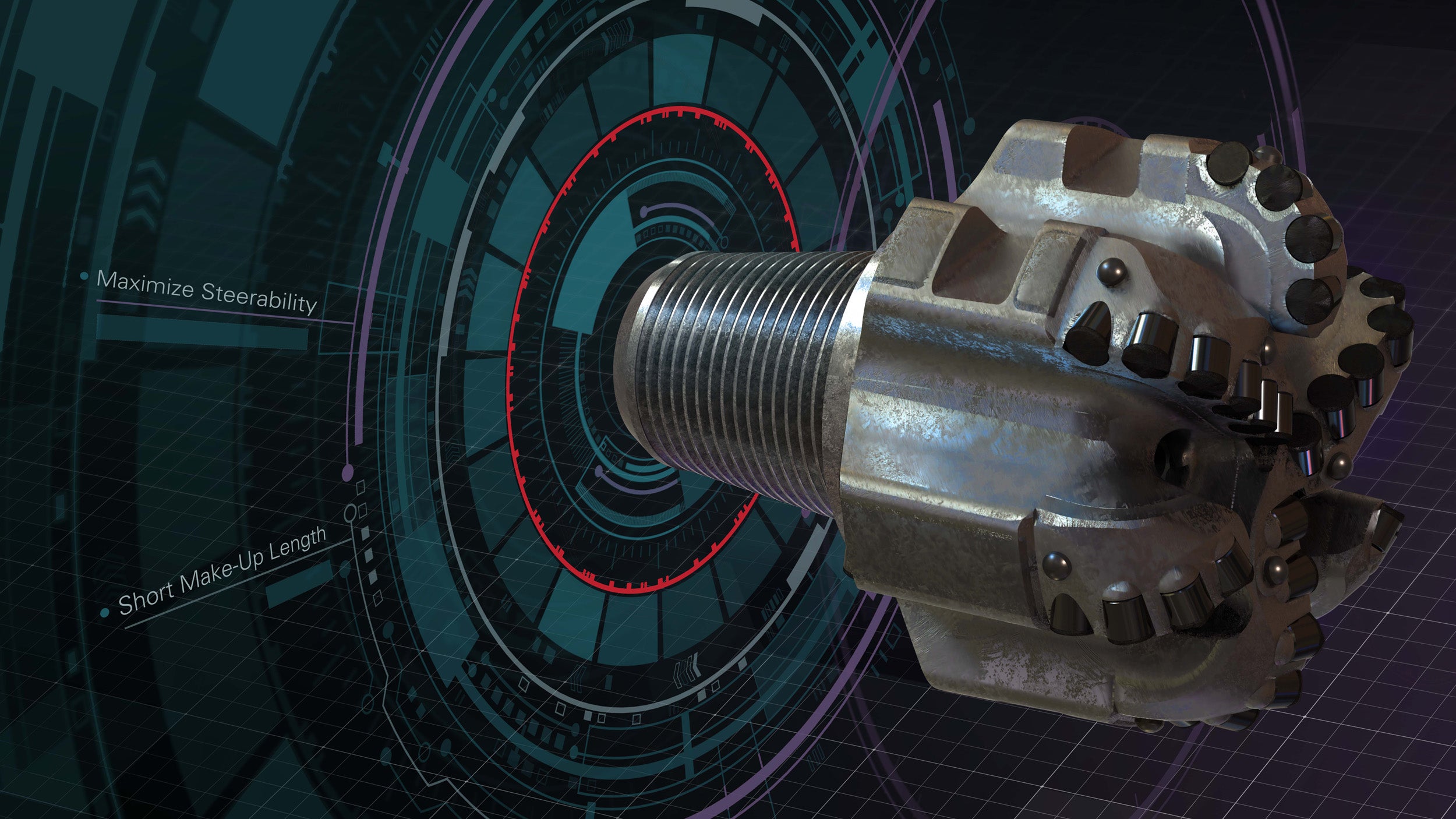

Halliburton’s HyperSteer™ directional drill bits addressed both challenges through reduced makeup length and sufficient gauge length. The reduced makeup length allows the RSS to transfer more side force to the drill bit, enhances side cutting, and achieves higher build rates. Meanwhile, the gauge length helps ensure stability in the lateral, particularly when ROP is increased. Halliburton selected an 8.75 in. HyperSteer HXi64MKs directional drill bit to increase DLS in the curve and maintain low shock and vibration in the lateral to help increase RSS tool life. The plan was to use the bit to build the curve and drill the entire four-mile lateral to a total depth (TD) of 30,315 ft.
The operator drilled its first-ever four-mile lateral in a single run in the Permian Basin. The 8.75 in. HyperSteer bit drilled 20,565 ft in the curve and lateral. During this run, the operator set a record in the Permian Basin for single-run footage. The HyperSteer directional drill bit technology and drilling strategy helped the operator reduce costs through the elimination of trips and reduced operational time.
Directional drill bits designed for high build rates in curve and lateral applications.
