Crush & Shear™ hybrid bit improves directional stability in curve without sacrificing penetration rate.
Download PDFUnconventionals
Complete a one-bit run curve with directional control and higher ROP.
Stephens County
An 8-3/4 inch curve interval in a field in Stephens County, Oklahoma consisted of challenging formations with varying rock strengths. These tough transitions could cause cutting structure damage to the drill bit, making it difficult to maintain tool face control. Many operators in this field struggled to consistently complete the curve section in just one run.
The challenge set by one of our customers was to drill the curve section in a single bit run while maintaining the targeted build rate of 14°/100 feet (14°/30.5 meters) and improving on the offset runs’ rates of penetration (ROP).
In certain formations or applications, a hybrid drill bit is required to ensure that directional targets are achieved, while also allowing the operator to maintain drilling efficiencies. Hybrid drill bits have been successful in demanding applications where steerability is critical, and/or where durability is required due to formation inconsistencies.
Crush & Shear™ hybrid bit technology is engineered to take advantage of rock failure mechanics while providing lateral stability. It has the ability to withstand high weight on bit (WOB) while reducing torque fluctuations, thus improving toolface control and enabling smoother drilling. The Crush & Shear drill bit reimagines hybrid bit technology by placing the PDC elements in parallel with the rolling elements, instead of in series. By optimizing PDC element placement and positioning rolling cones in the center to crush the rock (where PDC shearing action is inefficient), the Crush & Shear hybrid bit achieves higher ROPs, improves lateral stability, and minimizes torque fluctuations – thus increasing drilling efficiency and extending the life of PDC elements.
Bit run
Feet/hour
USD saved for the customer
For this challenging application, our Crush & Shear technology was utilized to design a bit that could complete a one-bit run curve while still being able to meet the directional and ROP requirements set by the customer.
Utilizing Crush & Shear hybrid bit technology enabled the operator to successfully complete the curve section of the subject well in just one run – achieving an ROP of 25 feet/hour (7.6 meters/hour), beating the ROP in the offset wells by over 5 feet/hour (1.5 meters/hour). Additionally, this solution reduced the cost of the interval, saving the customer over USD 120,000.

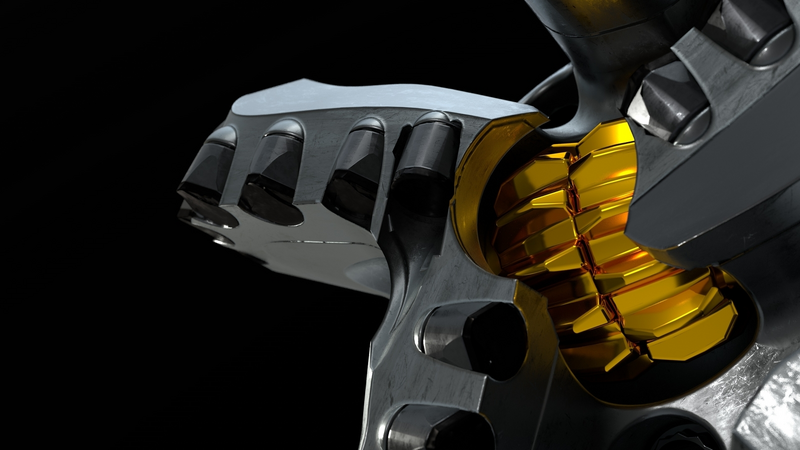

Halliburton Crush & Shear™ hybrid drill bit technology optimally places the PDC and rolling elements increasing drilling efficiency.
Hybrid drill bits combine the best of fixed cutter and roller cone technologies to increase control, durability, and ROP.
Fixed cutter and roller cone bits are engineered to optimize performance by using our global network of engineers to design the right bit for the right application.
