Operator maximizes lateral well contact in complex Mid-Continent well

Challenge: Managing contact with severe dip angles Developing the well

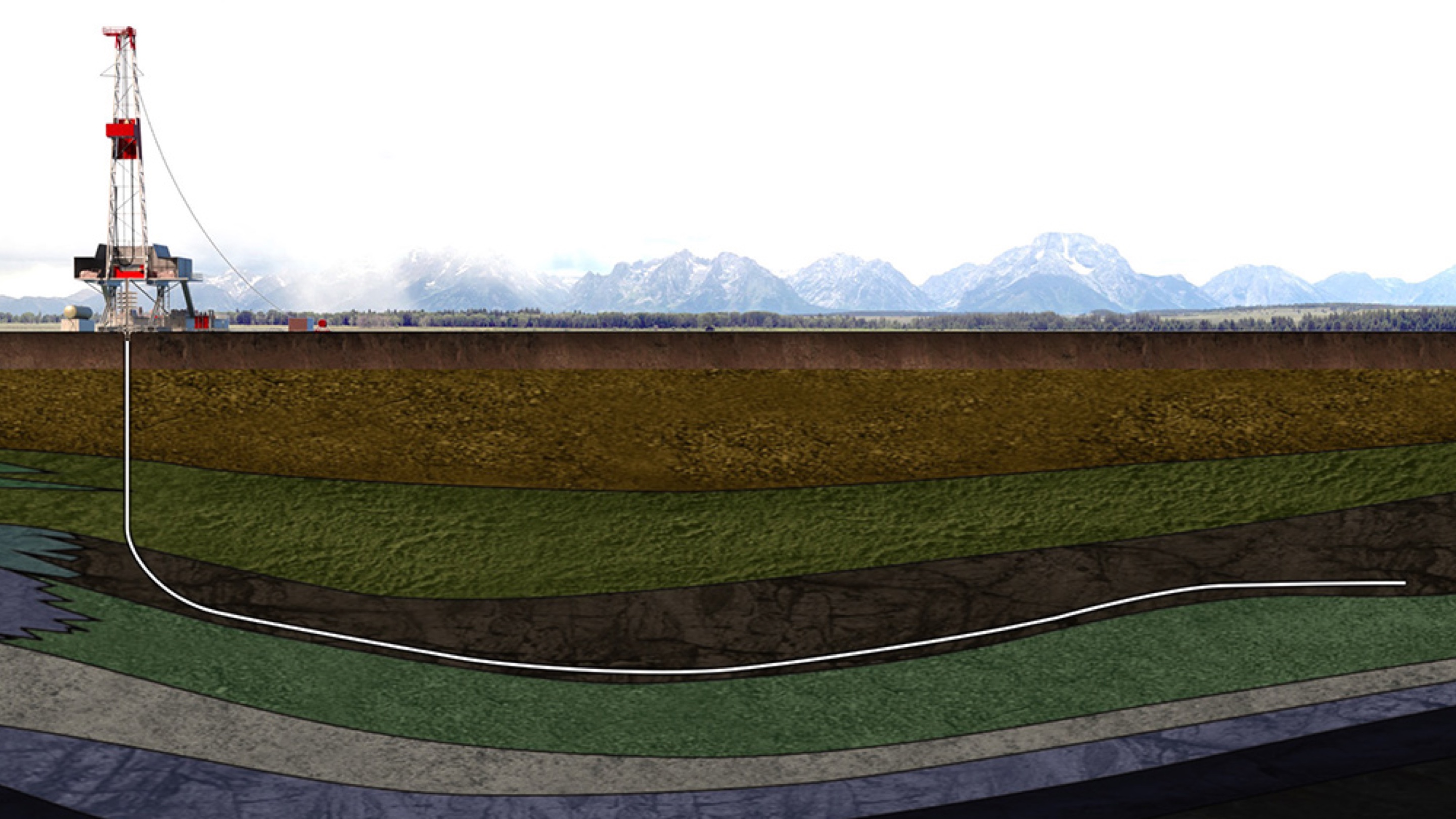

Maximizing reservoir contact in a long lateral section traversing a formation with dip angles varying from 89° to 93° over a short interval was the goal of an operator drilling in the Spring shale formation in the South Central Oklahoma Oil Province (SCOOP) play.

Solution: Engineered drilling with intelligent bottomhole assembly design the reservoir

Halliburton Sperry Drilling recommended the new iCruise® intelligent rotary steerable system (RSS), which is designed to reduce well time and place wells accurately.ajfaoijancoeijaa

iCruise reduced dogleg severity while precisely steering the well in the zone for the entire 5,226-foot (1,593-meter) lateral, helping maximize asset value. This precise control was maintained by highly accurate directional data processed at 1,000 measurements a minute.

Halliburton collaborated with the operator so that the iCruise bottomhole assembly (BHA) was properly configured to achieve the directional drilling objectives.

The BHA interpreted critical formation dips. This was achieved with the ADR™ azimuthal deep resistivity service along with the iCruise intelligent RSS matched with a GeoTech® (GTi) drill bit designed via the Design at the Customer Interface (DatCISM) process.

Direction by Design® (DxD) software was used to add enhanced capabilities that gave the RSS an increased rate of penetration (ROP), more accurate steerability, and better control.

This engineered drilling solution enabled the operator to drill 5,226 feet (1,593 meters) in 105.5 IADC hours, with an average rate of penetration (ROP) of 49.5 feet (15 meters) per hour – all while traversing the steep inclines encountered in this geological environment. The rugged design of the iCruise RSS allowed the section to be drilled in a one-bit run.ajaojoaicancoa call me

Solution: Engineered drilling with intelligent bottomhole assembly design

Halliburton Sperry Drilling recommended the new iCruise® intelligent rotary steerable system (RSS), which is designed to reduce well time and place wells accurately.

Result: 98% in zone for reduced run time and increase asset value test

Sperry Drilling helped the operator remain 100 percent in zone, while reducing well time by drilling the long lateral section in one run to help maximize asset value. The successful results of the iCruise led the operator to deploy the new system in other wells in the area. Test
